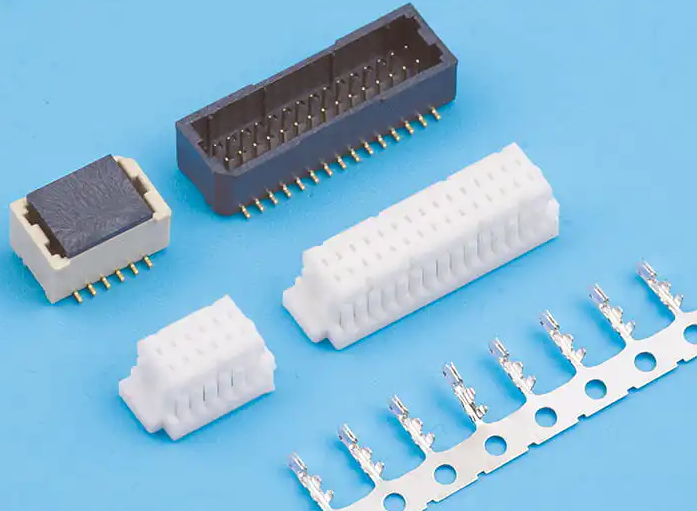

1.0-B Type Double Row(SHD) Wire-to-Board Strip Connector
1、CKT: 2*4Pin to 2*30Pin
2、Current rating: 1A AC/DC
3、Voltage rating(max): 50V, AC/DC
4、Working Temperature: -25°C~+85°C,
(Including temperature rise in applying electrical current)
5、Contact resistance:Initial value s20mΩ
After environmental testing≤40mΩ
6、Insulation resistance: 2100MΩ
7、Withstand voltage: 500VAC(rms)
8、Applicable wire: AWG #32 to #28
9、Applicable PCB board thickness: 1.6mm to 2.0mm
